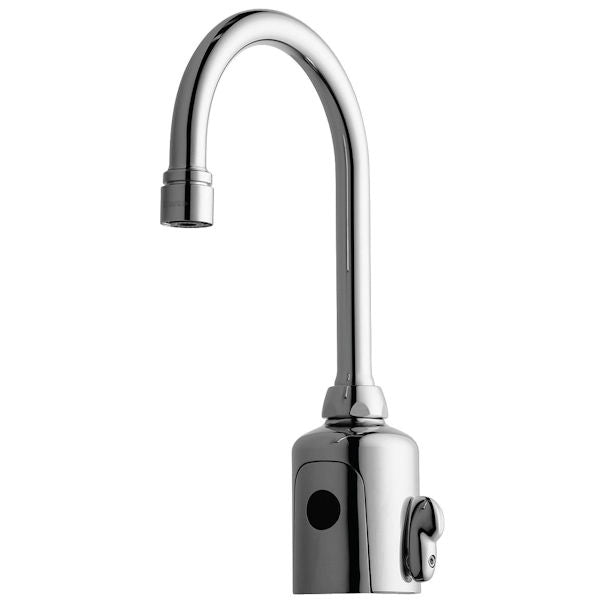

Chicago Faucets 116.123.AB.1 Rigid Gooseneck Bathroom Faucet, Chrome,1 Hole -

Chicago Faucets 116.123.AB.1 Rigid Gooseneck Bathroom Faucet, Chrome ,1 Hole

Details:

• 116.123.AB.1
• Color Chrome Finish
• Handle Style Electronic
• 12 Volt AC Transformer Required (Order Separately)
• Sensor Range 3 in to 13 in
• Overall Height: 11-1/4" (measured from mounting surface to highest point on faucet)
• Spout Height: 6-7/8" (measured from mounting surface to spout outlet)
• Spout Reach: 5-3/8" (measured from center of faucet body to center of spout outlet)
• Required Installation Holes: 1
• Flow Rate: 0.5 GPM (gallons-per-minute)
• Mounting Configuration: Single Hole
• Maximum Deck Thickness: 1-1/2" (cannot install on decks thicker without extention kit)
• Rated Operating Pressure: 20 - 125 PSI
• Rated Operating Temperature: 40 - 140 degrees Fahrenheit
• 1-1/16" connection - designed for use with standard U.S. plumbing supply bibs
• Drain assembly is not included.
• ASME A112.18.1/CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
• California Health and Safety Code 116875 (AB1953-2006)
• Vermont Bill S.152
• NSF/ANSI 372 Low Lead Content
• ADA ANSI/ICC A117.1
• CALGreen
• Constructed of solid brass ECAST material
• Operated by a dual beam infrared sensor - powered by a 12V AC transformer (order part #242.559.00.1 separately)
• ADA compliant
• Low lead compliant - meeting federal and state regulations for lead content
• Mounting hardware not included (Transformer to be ordered separately)
