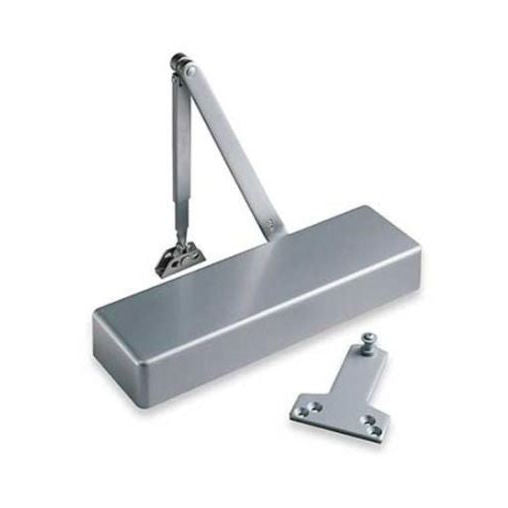

Norton 8501689 ADA Compliant Adjustable Spring Sizes 1-6 Door Closer -

Norton Door Controls offers traditional surface, industrial economy, overhead concealed, security, commercial, architectural, electromechanical and electrified closers. To complement the closers, Norton also offers a unique range of arms to help provide maximum door and frame protection.

• Non-Hold Open
• Adjustable through the power range of sizes 1 through 6; as outlined in ANSI/ BHMA specification A156.4 option PT 4H.
• Closers will also comply with the opening force requirements as outlined in the Americans with Disabilities Act (ADA) and ANSI/BHMA standard A117.1 for interior doors.
• Door closers is non-handed and can be installed on either right- or left-hand swing doors. Pinion shaft extends vertically through the closer body in both directions.

Dimensions and Measurements:

• Closer Body Length: 13 in.
• Closer Size: 1-6
• Door Thickness: 1-3/4"
• Height: 2.875 in.
• Horizontal Mounting Holes: 12 in.
• Length: 13 in.
• Max Door Opening: 180 Degrees
• Max Door Width: 48 in.
• Overall Size: 13 x 2-1/8 x 2-7/8
• Projection: 2.125 in.
• Vertical Mounting Holes: 12 in.
• Width: 2.125 in.
