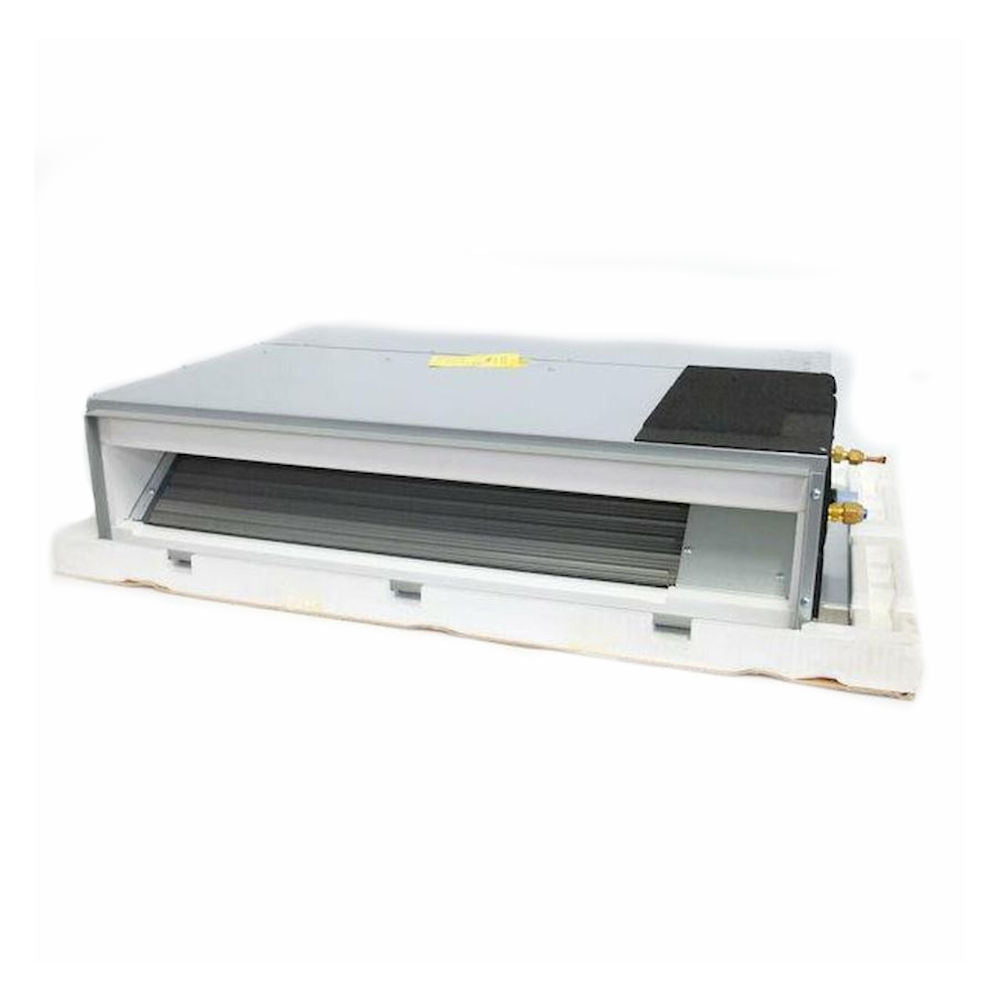

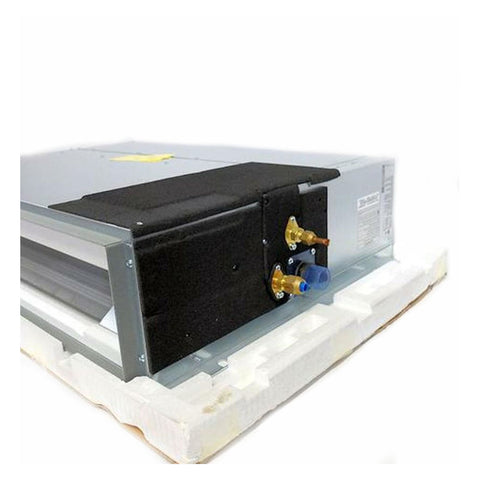

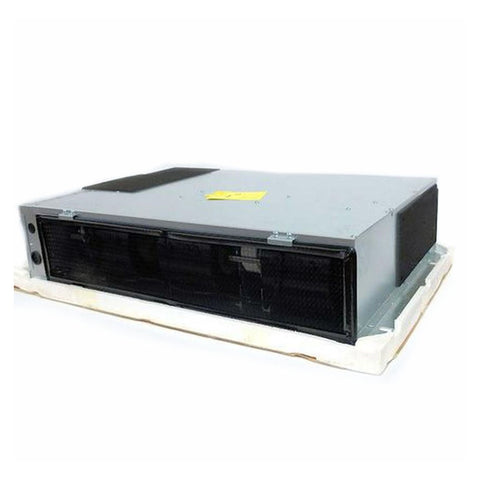

LG 7,500 Btu/h Ceiling Concealed Multi V Ducted Low Static -

Performance:

• Total Cooling Capacity (Btu/h) - 7,500
• Heating Capacity (Btu/h) - 8,500
• Power Input (W) - 30

Electrical:

• Power Supply (V/Hz/O) - 208-230/60/1
• Rated AMps (A) - 0.1

Entering Mixed Air:

• Cooling Max (°F WB) - 76
• Heating Min (°F DB) - 59

Unit Data:

• Refrigerant Type - R410A
• Refrigerant Control - EEV
• Sound Pressure⁵ dB(A) (H/M/L) 33/32/29 - 33/32/29
• Filter Type - Washable
• Filter Quantity - 1
• Filter Dimensions 29‐5/8"x 6‐5/8"x 1/4"
• Net Unit Weight (lbs) - 47

Fan:

• Type - Sirocco
• Fan Quantity - 3
• Motor/Drive - Brushless Digitally Controlled/Direct
• Motor Quantity - 2
• Airflow Rate H/M/L (CFM) - 300/265/229
• External Static Pressure (ESP) (in wg) - 0.08
• Minimum ESP/Fan Setting Value - 0/72
• Maximum ESP/Fan Setting Value 0.15/114

Controls Features:

• Auto changeover (Heat Recovery only)
• Auto operaton
• Auto restart
• Child lock
• Dual thermistor control
• Hot start
• Self diagnostics
• Sleep mode
• Timer (on/off)
• Weekly schedule
• Soft dry (dehumidification)
• Fan speed control
